Specialist Services for Ducting, Pumping and Refrigeration
We help contractors and consultants meet project requirements through glasswool ducting, pump skid packaging and refrigeration services across the UAE.
Explore our productsPartners with
Our products are part of something bigger.
The products we work with, grouped by family.
Air distribution

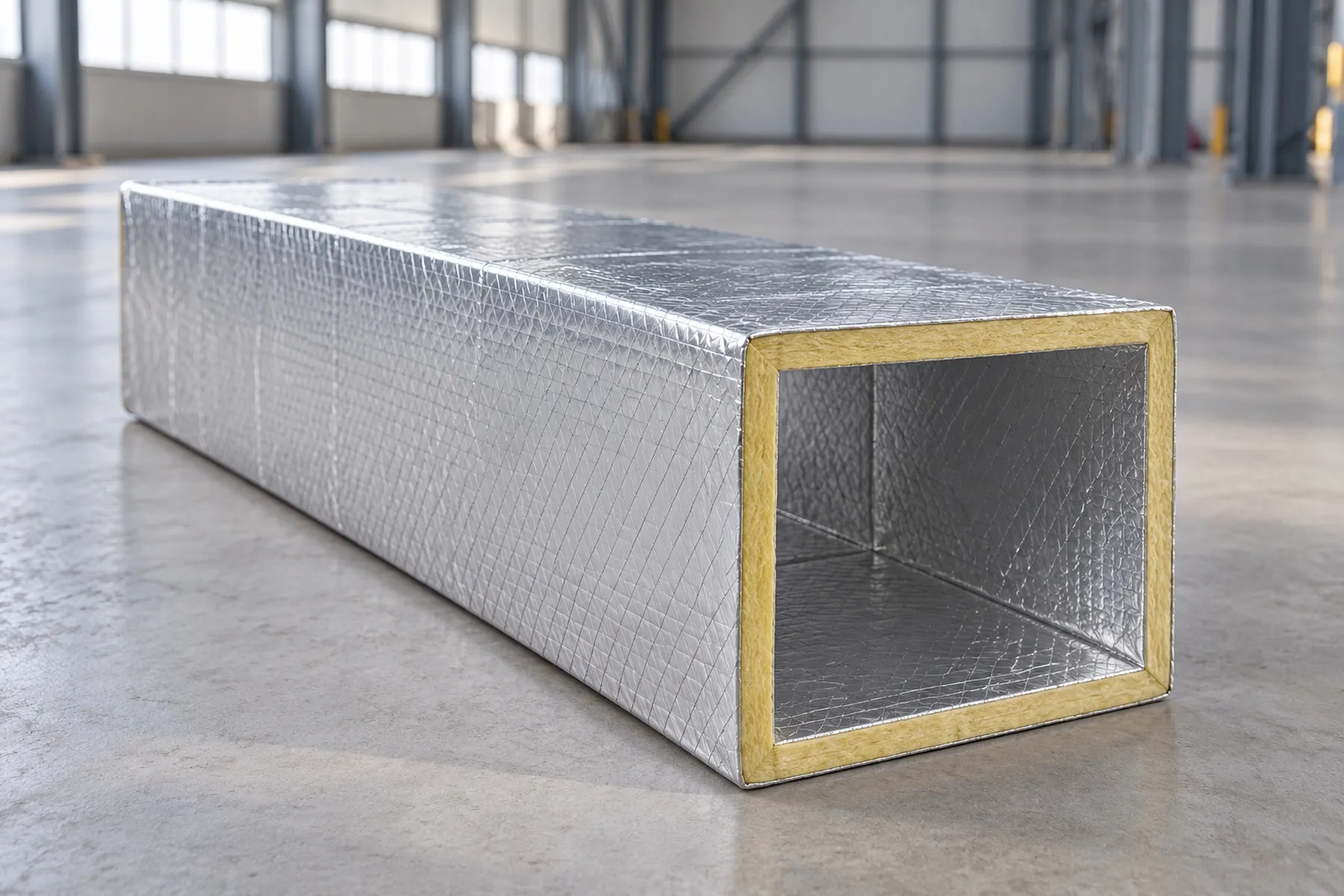

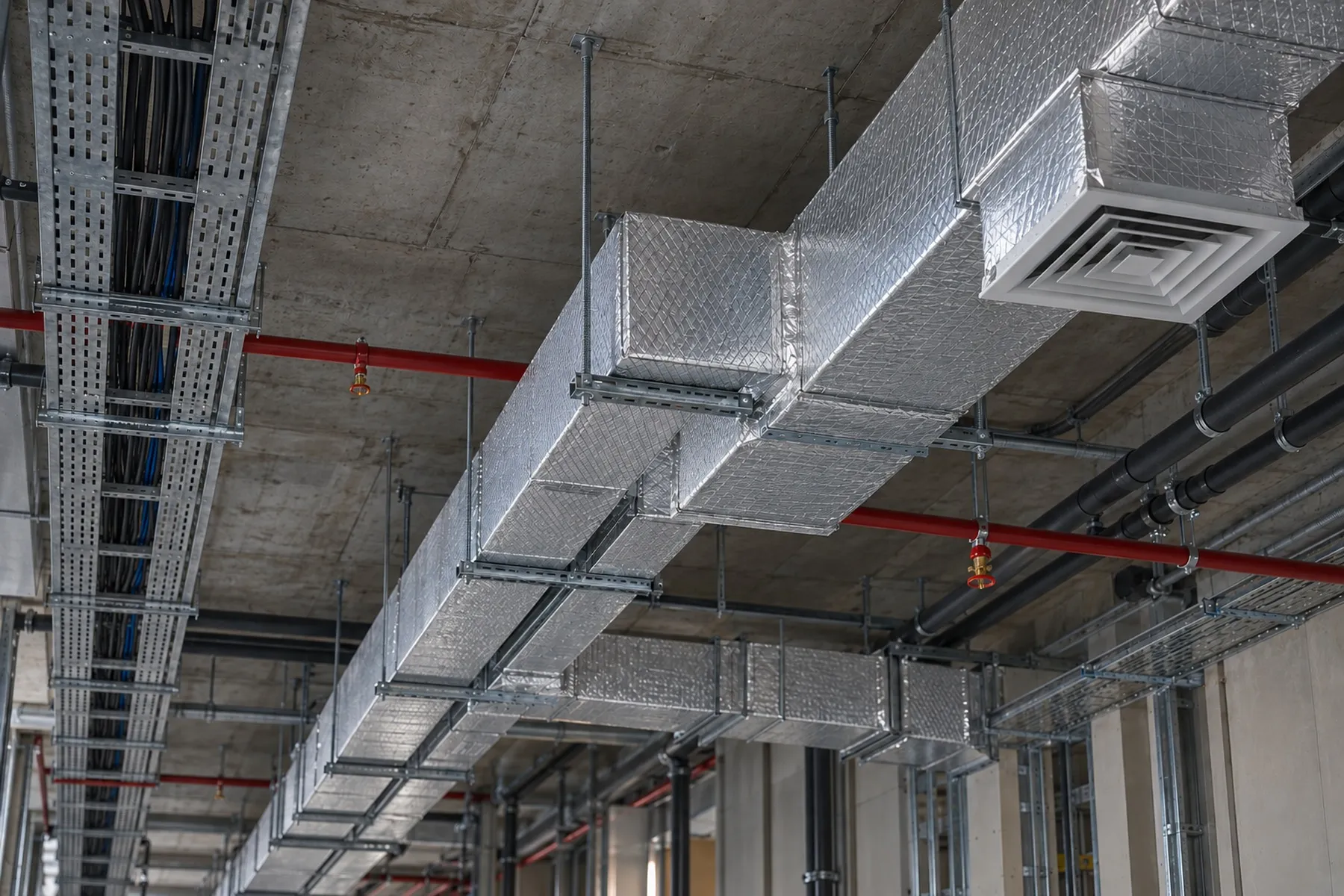

Glass-wool pre-insulated duct systems
CLIMAVER glass-wool duct sections, insulated and airtight as made, supplied to your schedule.
Aluminium facings inside and out. The general-purpose system for supply, return and fresh-air ducts where cleanability and a UL 181 listing are required.
-
Board thickness
25 mm
-
Inner face
Reinforced aluminium foil
-
Outer face
Reinforced aluminium foil, vapour barrier
Black glass-fabric inner face for maximum sound absorption. Specified where acoustic criteria drive the design.
-
Board thickness
25 mm
-
Inner face
Black reinforced glass fabric (neto)
-
Outer face
Reinforced aluminium foil, vapour barrier

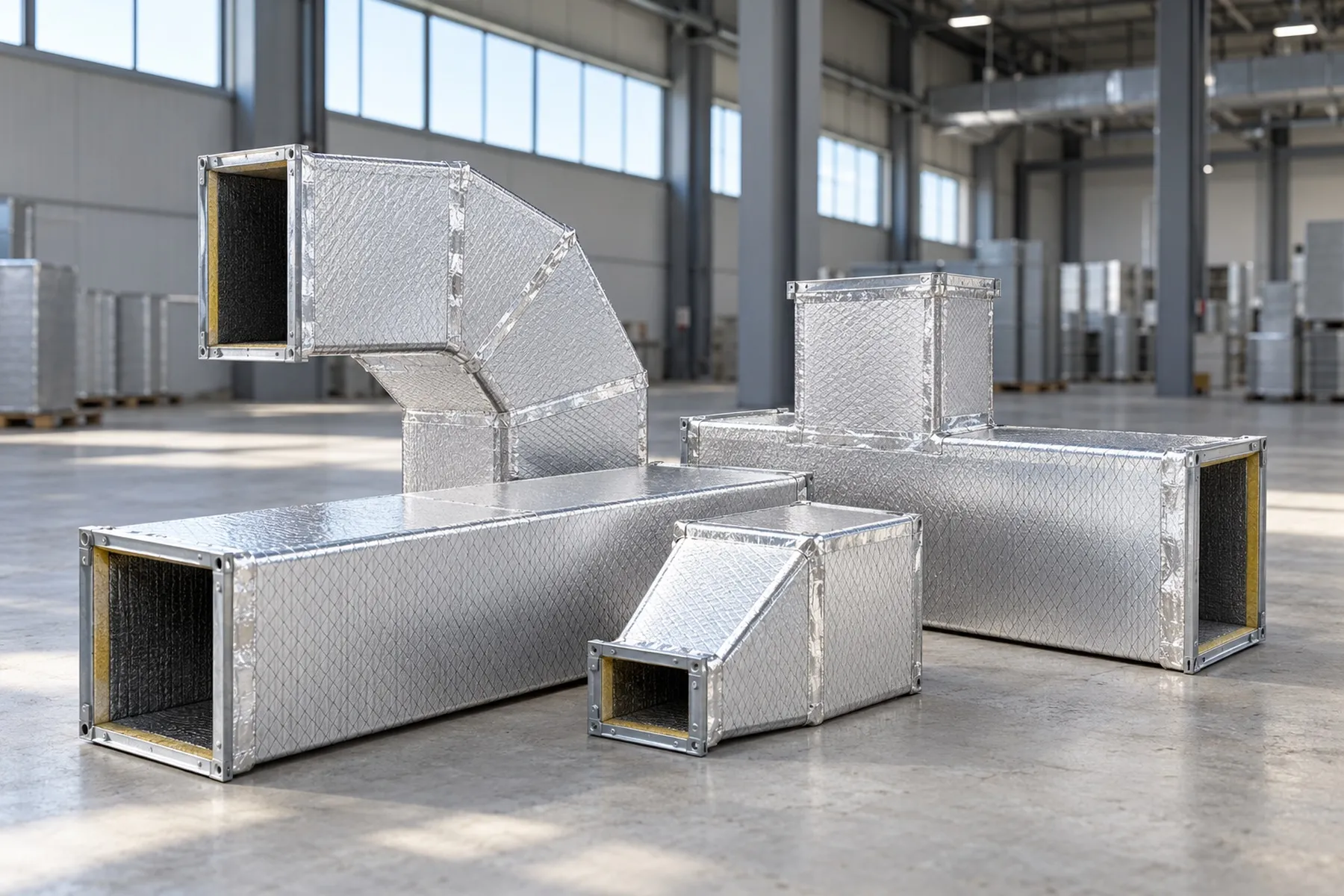

Straight sections, elbows, reducers, offsets, branches and plenums prepared from the duct schedule using the CLIMAVER straight-duct method.
-
Standard lengths
Per board size; joined with shiplap edges
-
Sizes
Any rectangular size within board limits
-
Joints
Stapled and sealed with aluminium tape

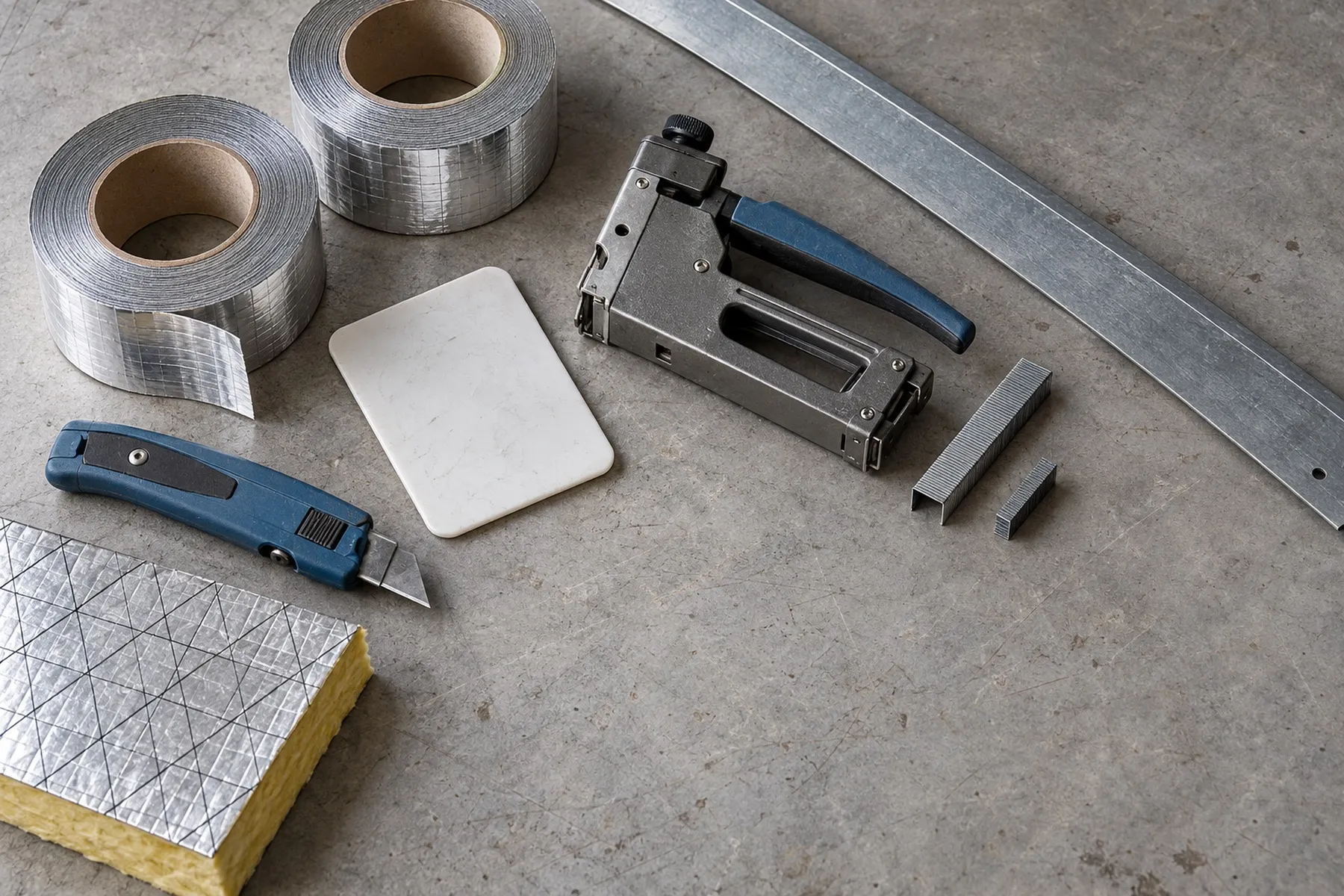

Everything the installer needs to close and connect the system, supplied with the ducts.
-
Tape
KIMMCO-ISOVER aluminium tape
-
Staples
CLIMAVER staples, 14 mm
-
Support
Hanger and channel guidance per manual
Water transfer and boosting
Packaged pump skids
Pumps, drives, panel and headers on one base. Two pipe connections and one power connection on site.

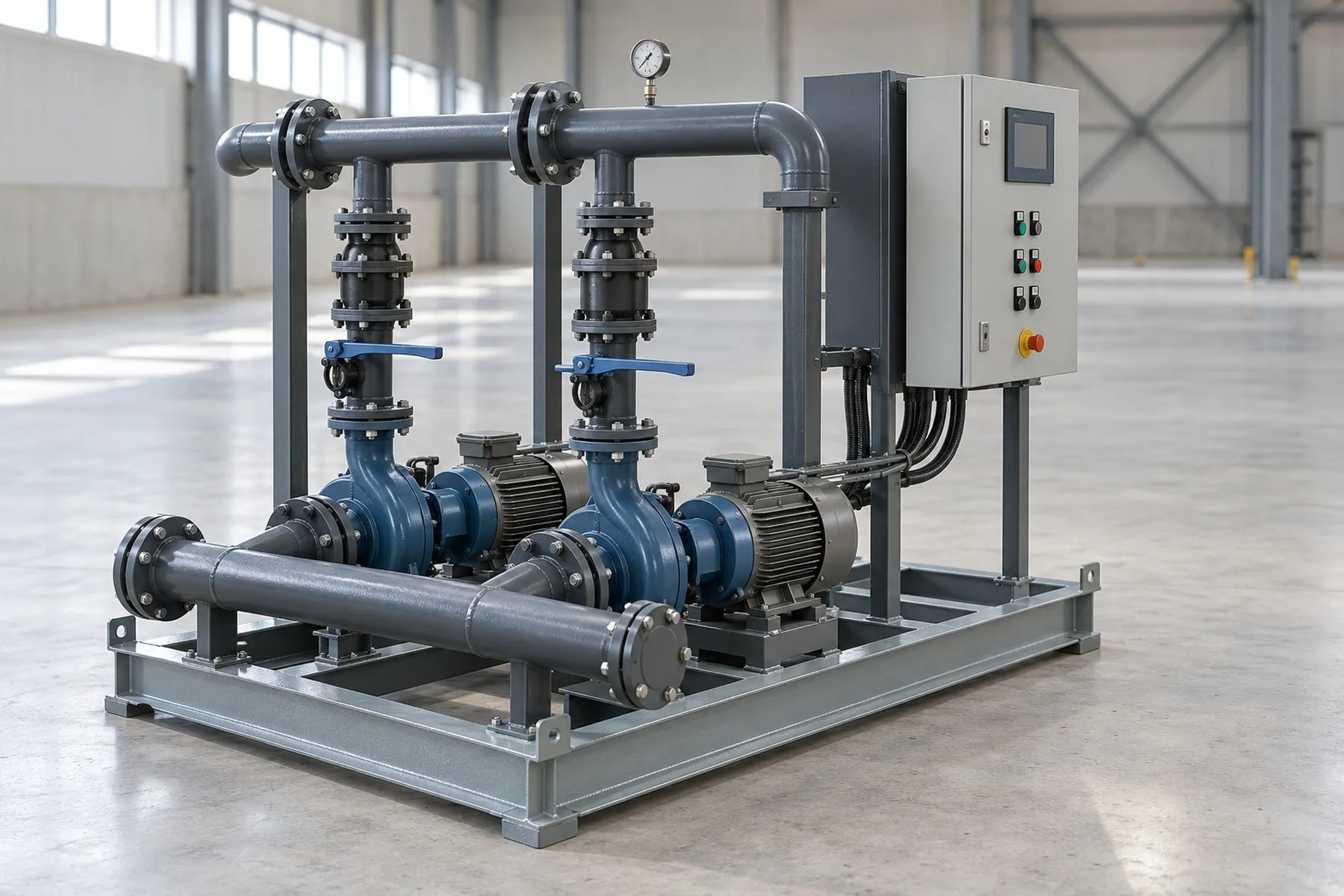

Ground-tank to roof-tank transfer, level-controlled, with dry-run protection.
-
Arrangement
Simplex or duplex, automatic changeover
-
Pumps
End-suction or vertical multistage
-
Control
Float or level-transmitter, DOL or soft start

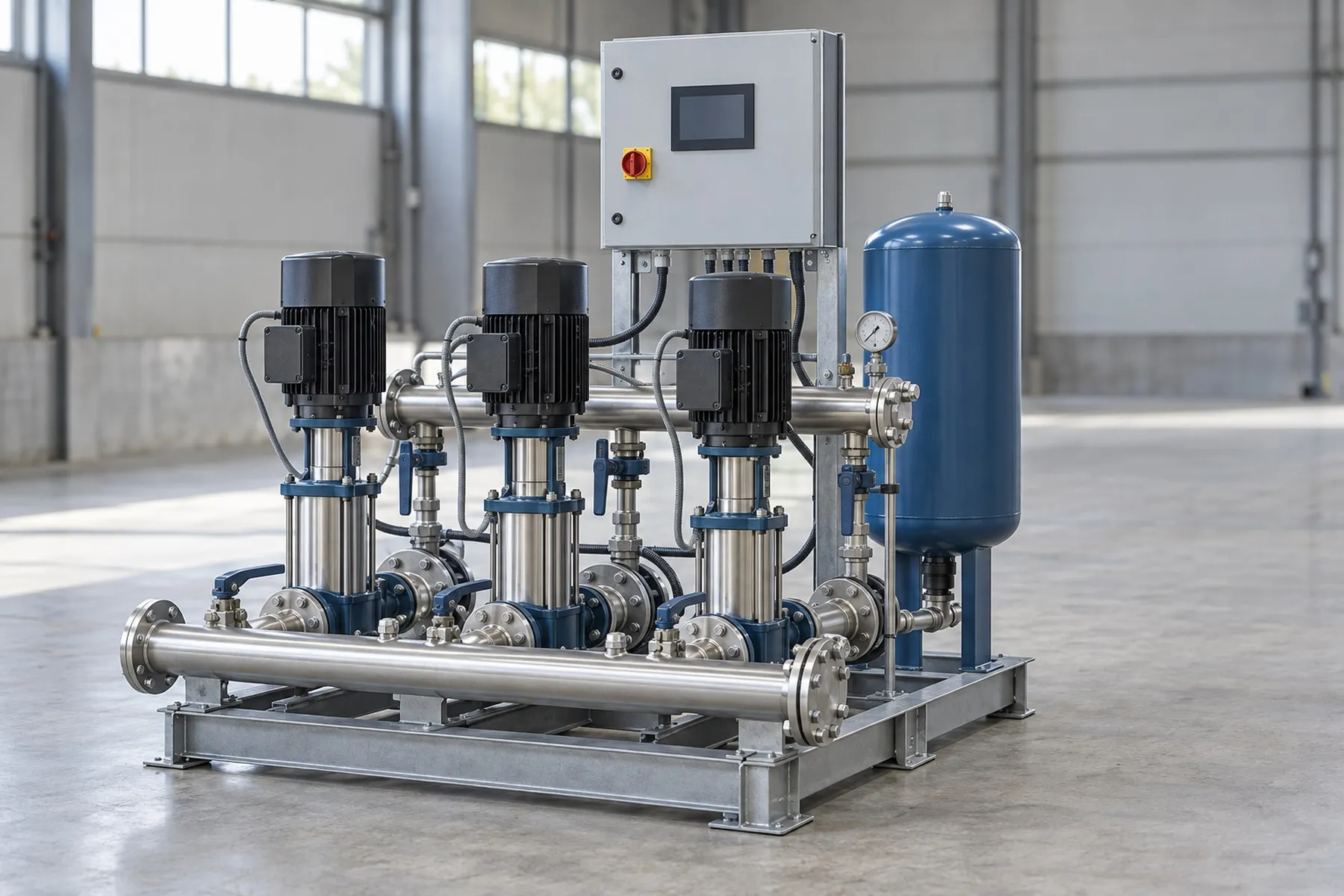

Constant-pressure supply to upper floors with variable-speed control and a pressure vessel.
-
Arrangement
Duplex, triplex or quad
-
Pumps
Vertical multistage
-
Control
VFD constant pressure, cascade, sleep mode

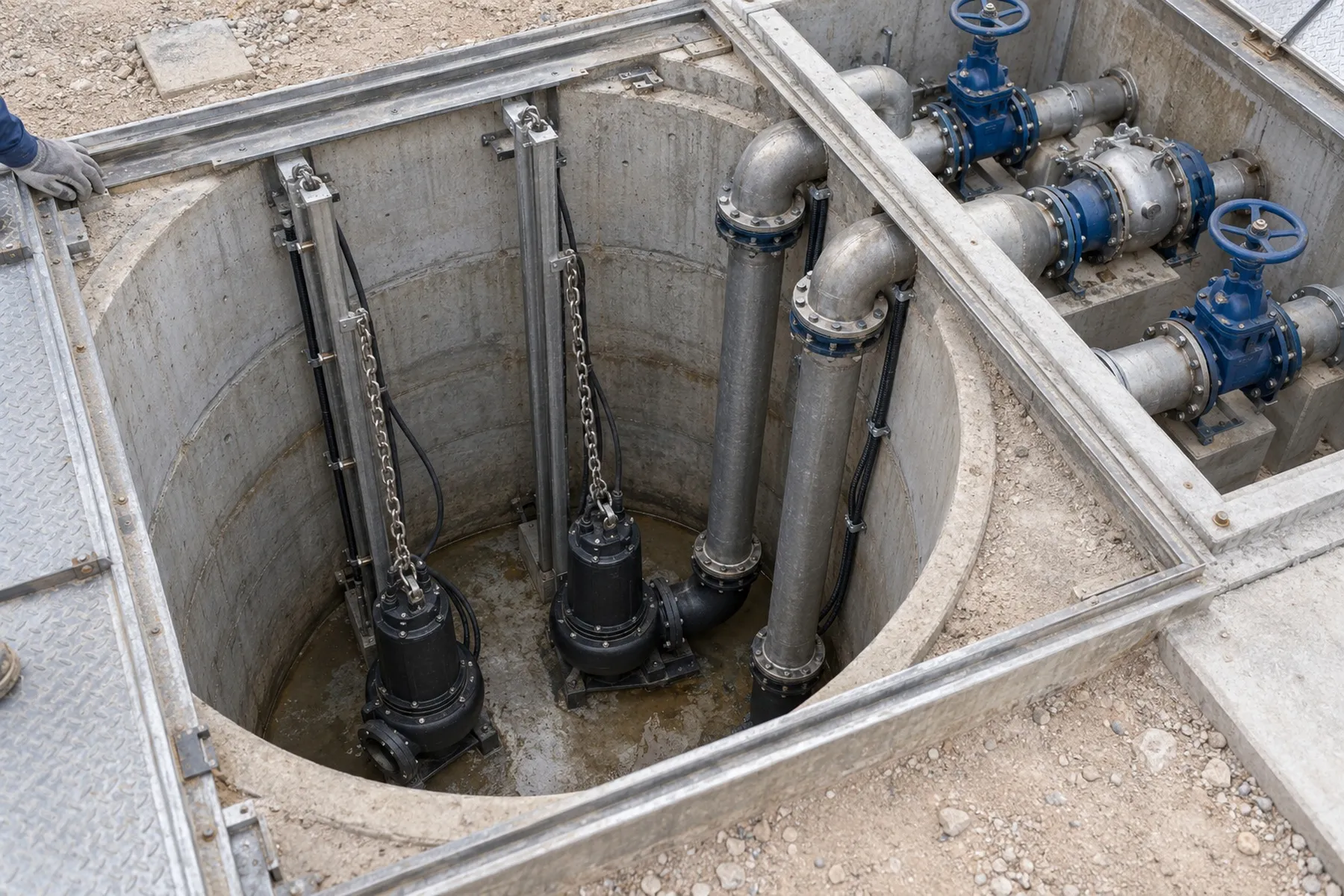

Duplex submersible pumps on guide rails with a float- or level-controlled panel.
-
Arrangement
Duty/standby, alternating
-
Pumps
Submersible sewage or drainage
-
Control
Level control, high-level alarm, BMS output

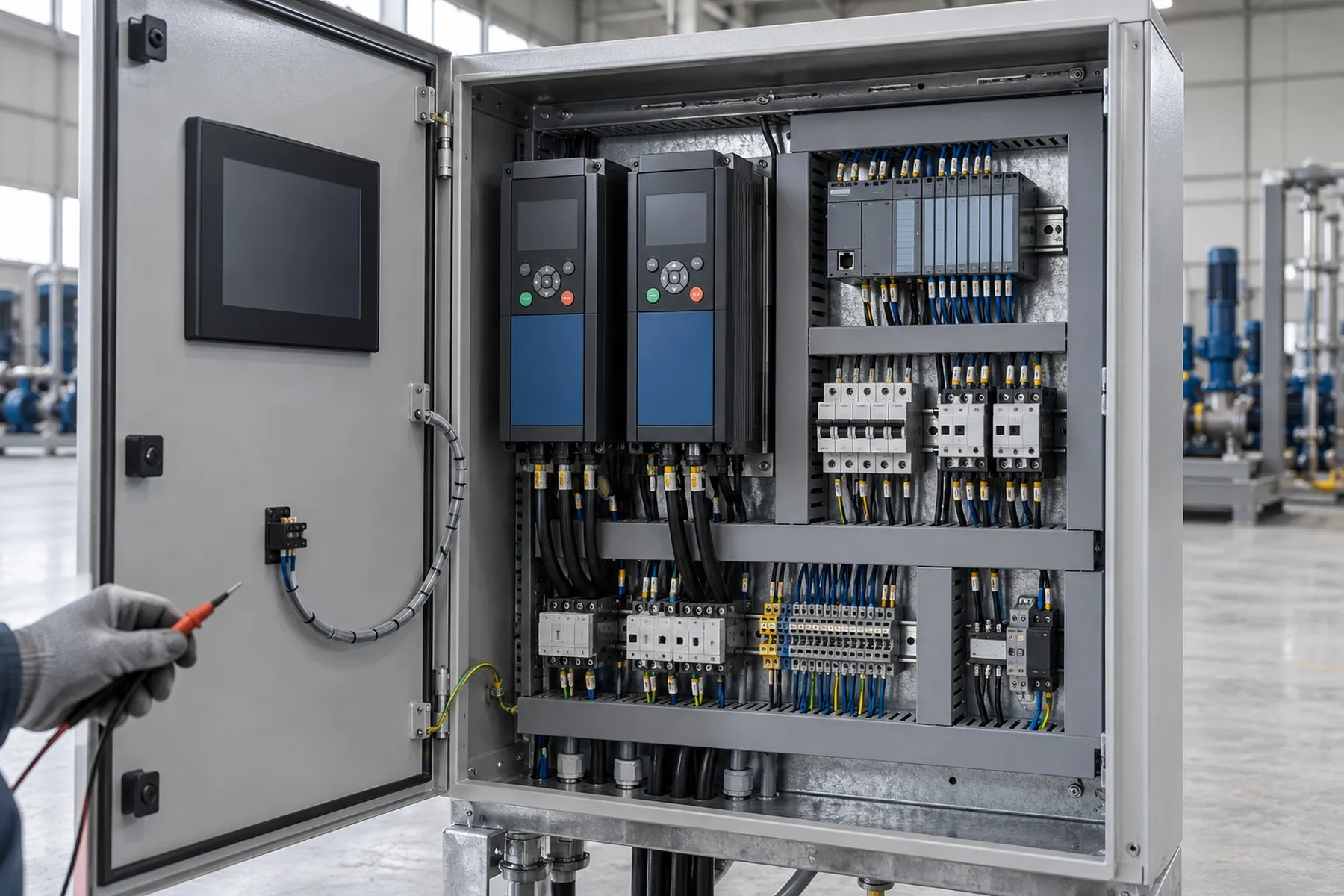

Components selected to suit the duty and the specification.
-
Drives
Variable-frequency drives, soft starters
-
Panels
IEC 61439 panels, IP54 or better
-
Pipework
Galvanised or stainless headers, isolation and non-return valves
Cooling and cold storage

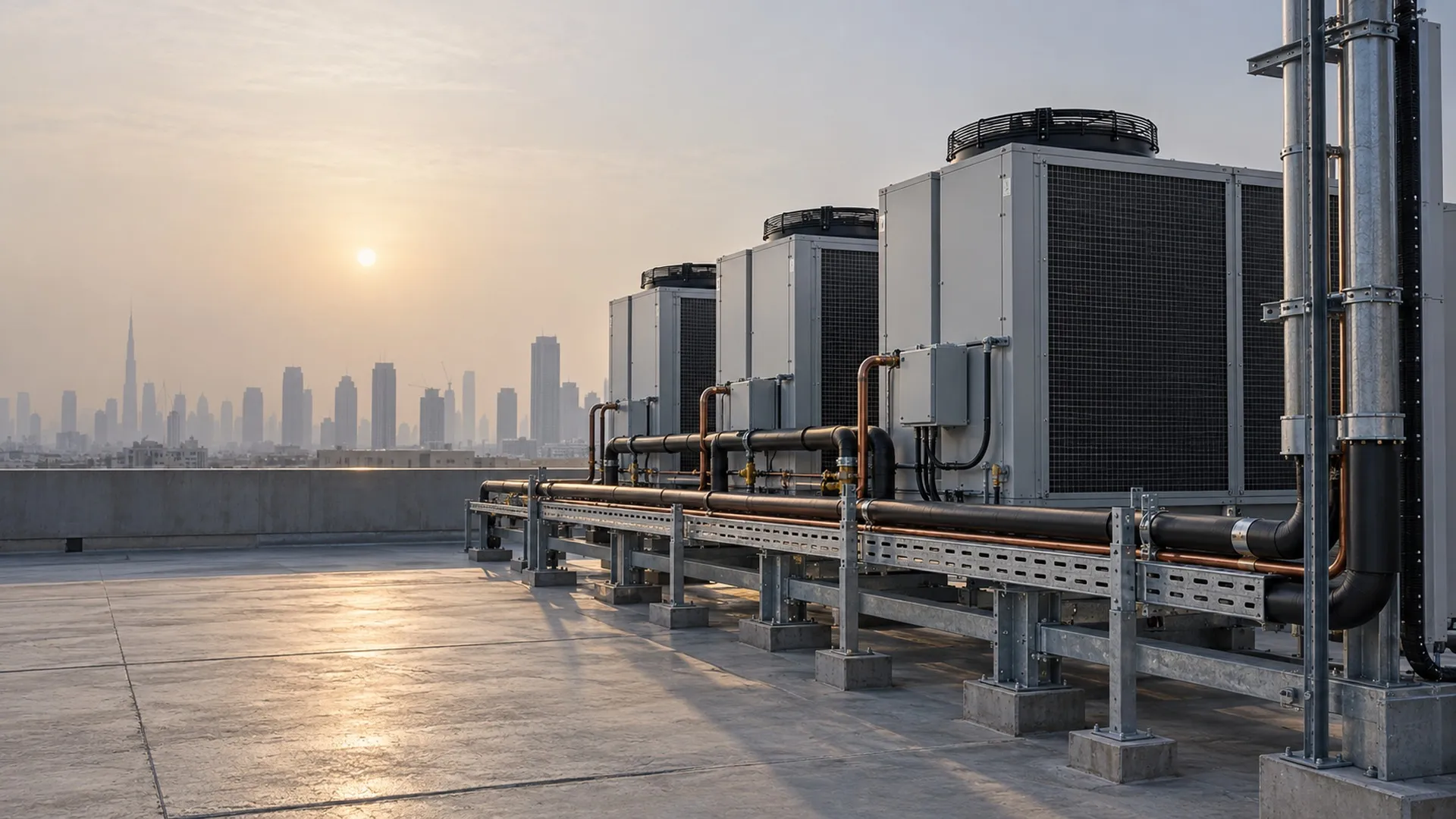

Refrigeration equipment and condensing units
Condensing units, evaporators and racks, matched from the load, the temperature and the ambient.

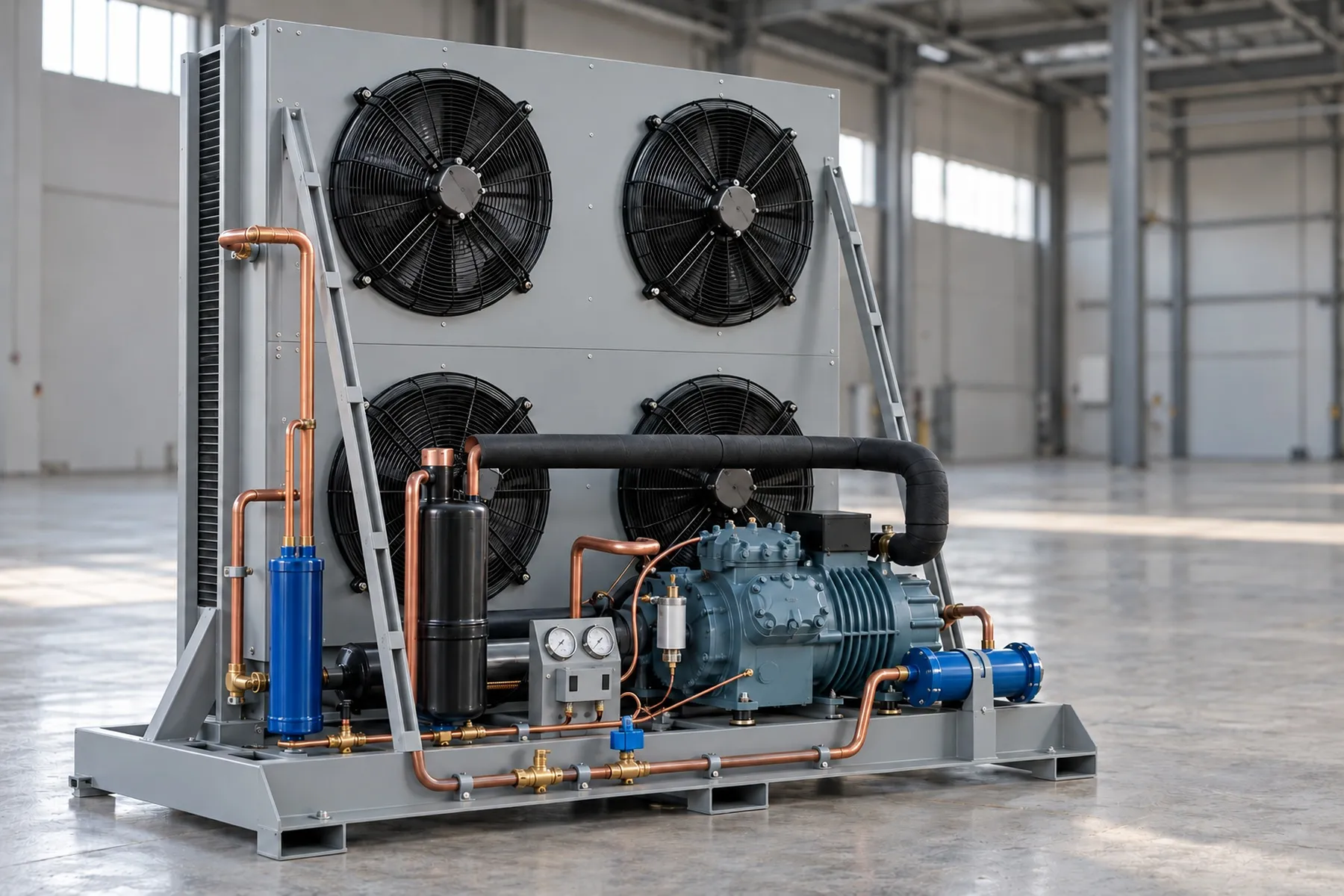

Housed units with compressor, condenser coil, fans, receiver and controls for cold rooms and small process loads.
-
Capacity
1 to 134 kW cooling
-
Stages
Single and two-stage
-
Compressors
Reciprocating or scroll

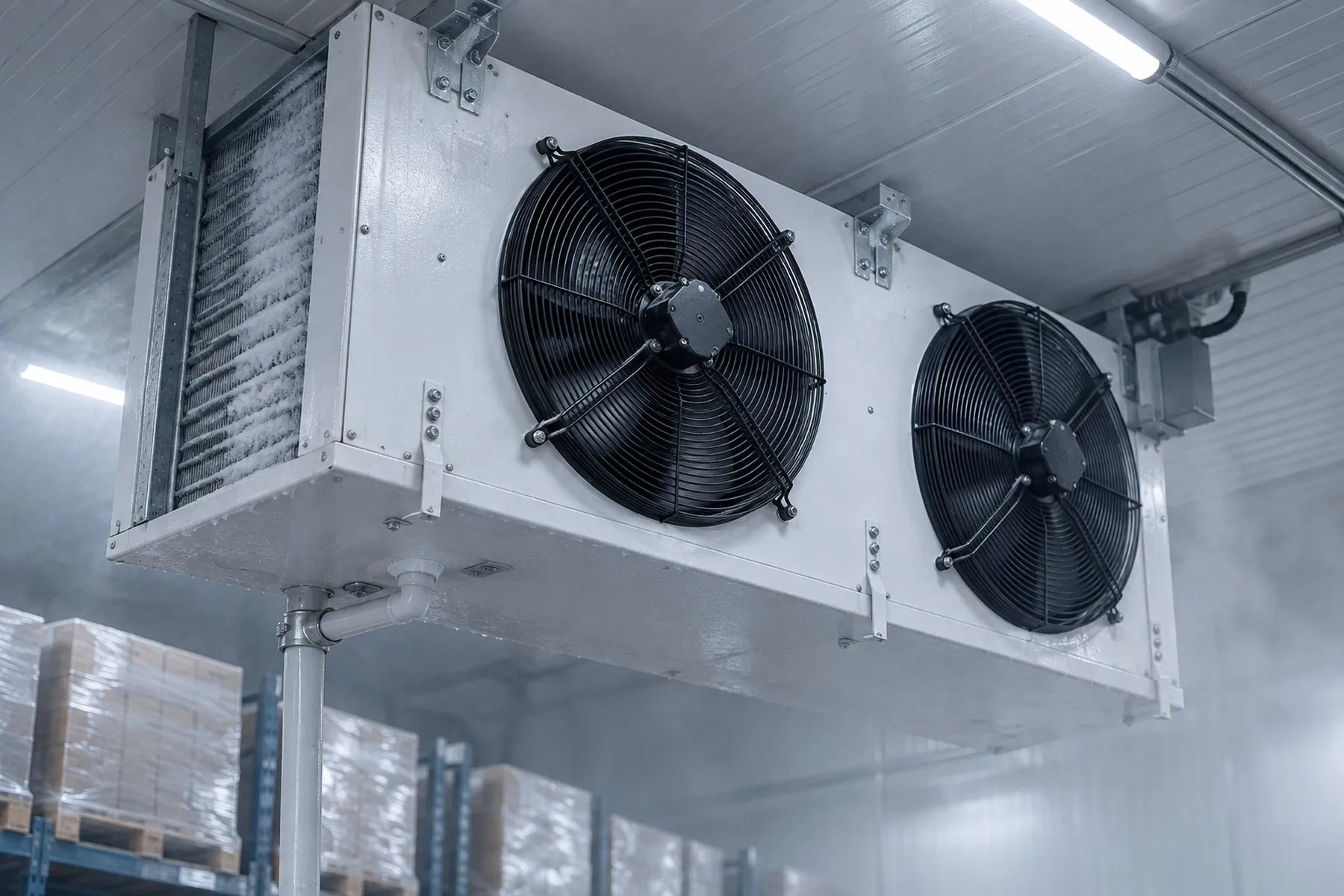

Ceiling- or wall-mounted unit coolers matched to the condensing unit and the room.
-
Duty
Chill, freeze and blast applications
-
Defrost
Electric or hot-gas
-
Coils
Copper tube, aluminium fin; coated fins on request

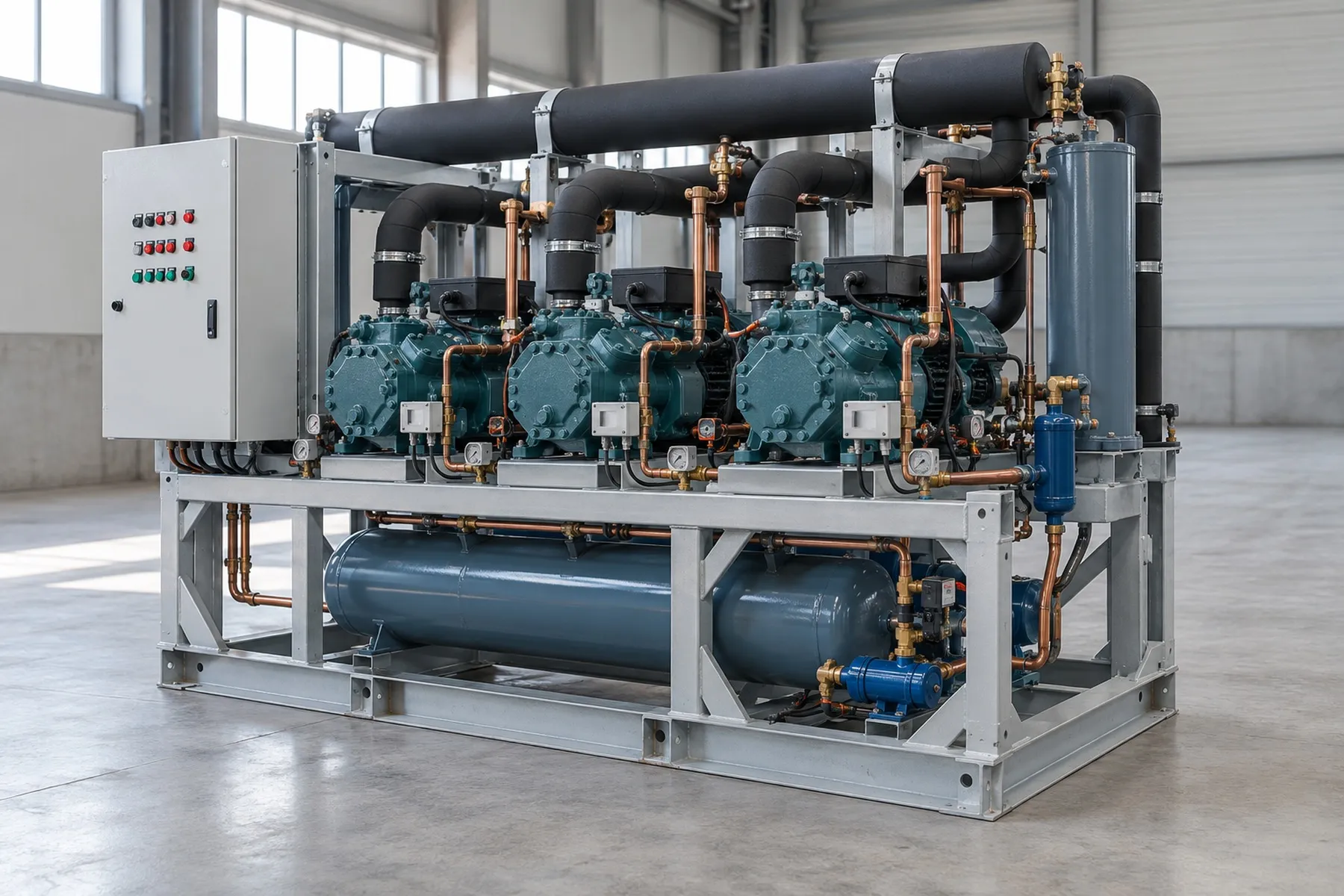

Multi-compressor racks on an open welded frame for large storage and industrial loads.
-
Capacity
20 to 700 kW cooling
-
Compressors
2 to 6, reciprocating or screw
-
Includes
Receiver, filters, sight glass, safety valve, pressure switches

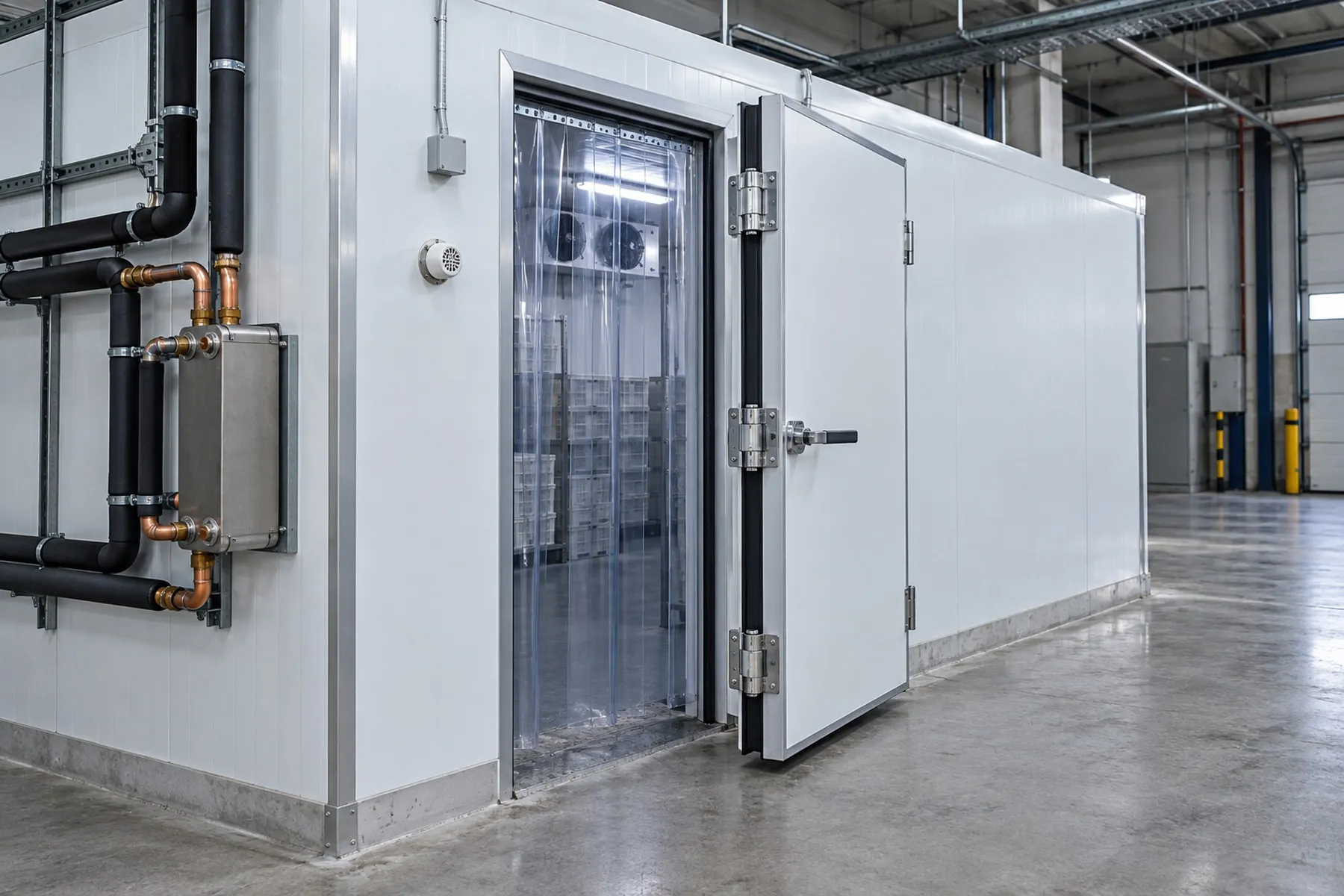

Air-cooled condensers, plate and shell exchangers, insulated doors and sandwich panels.
-
Condensers
Remote air-cooled, V and horizontal
-
Exchangers
Brazed plate, shell and tube
-
Doors
Hinged and sliding insulated doors

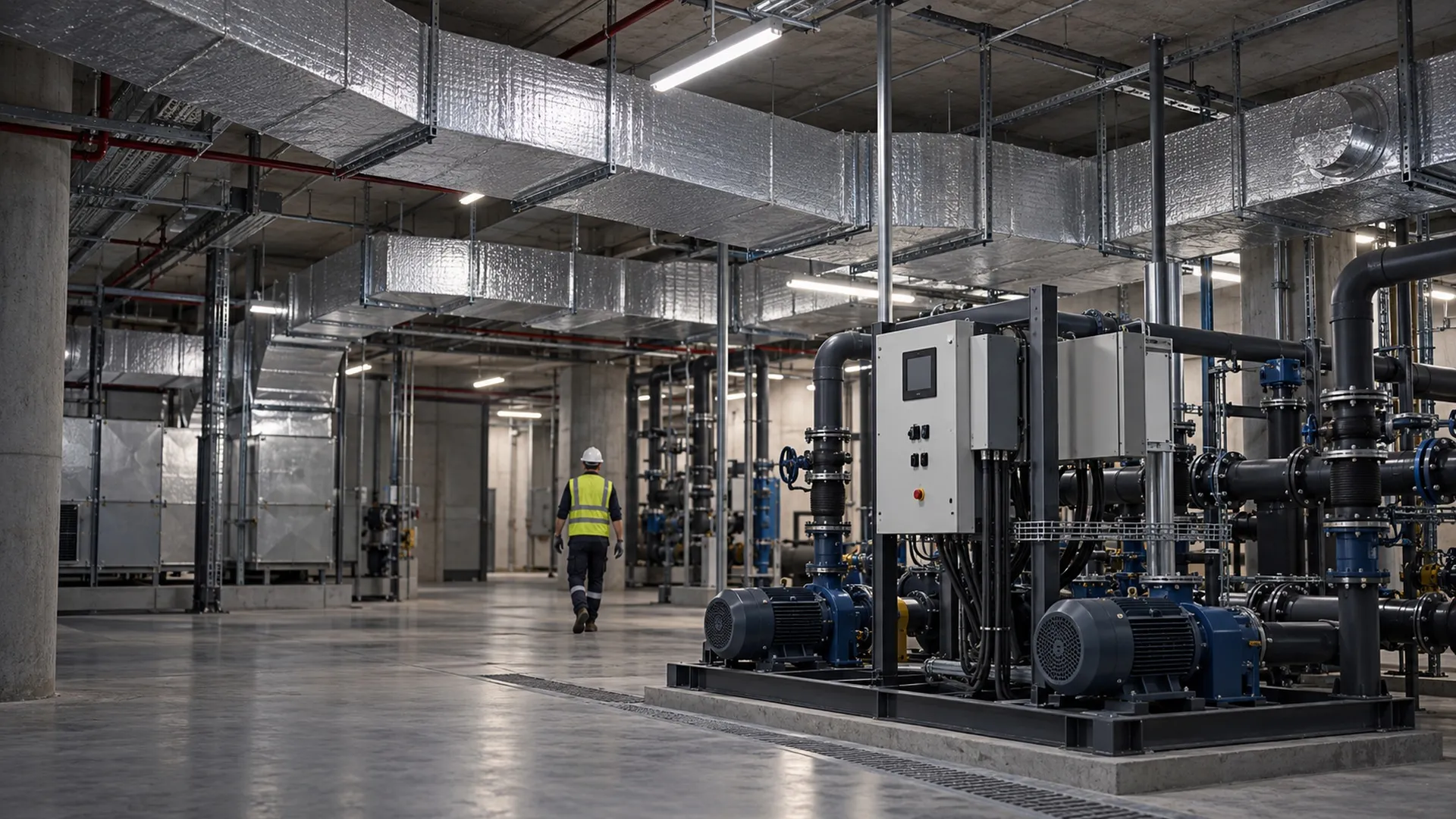

Three services. One point of contact.

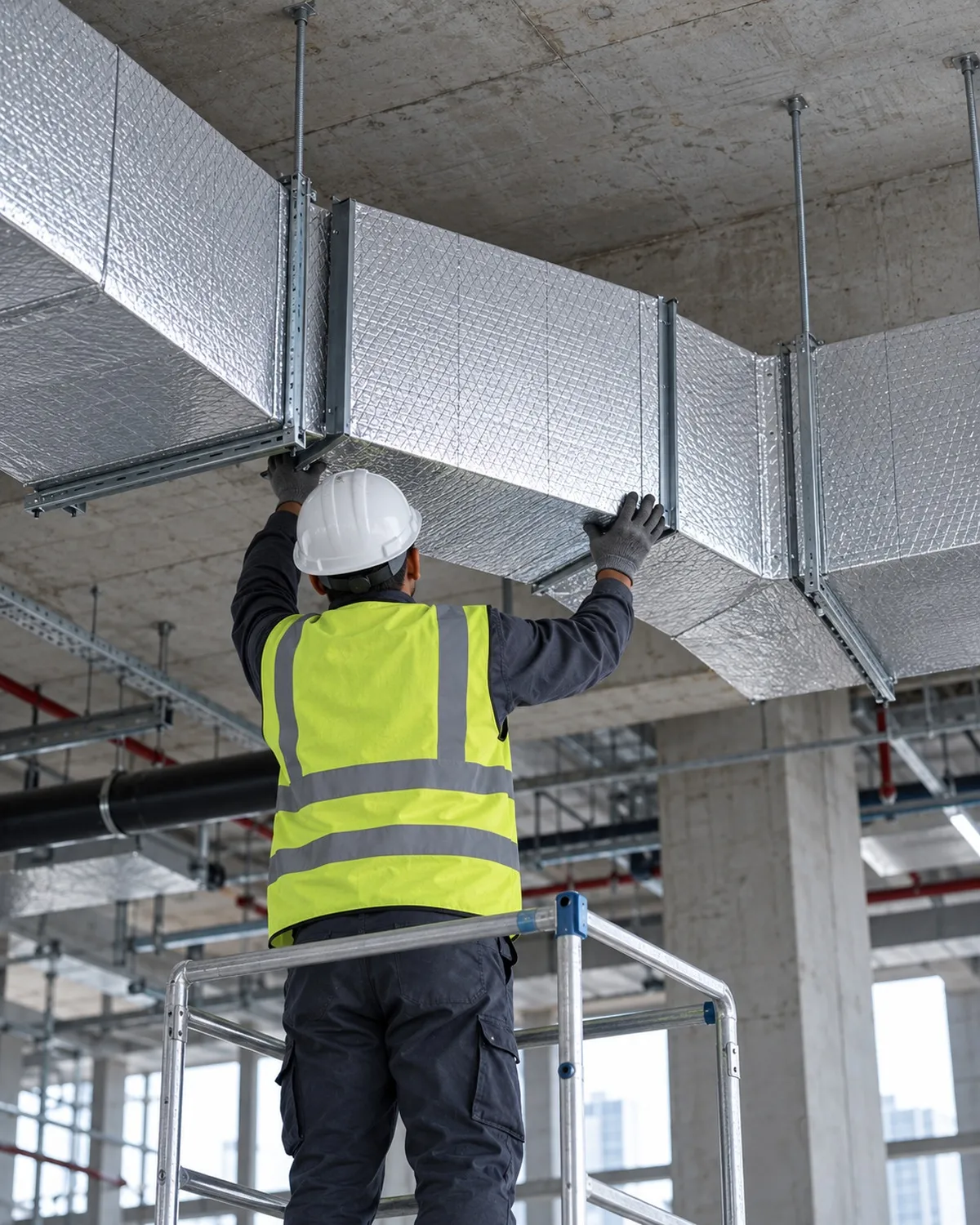

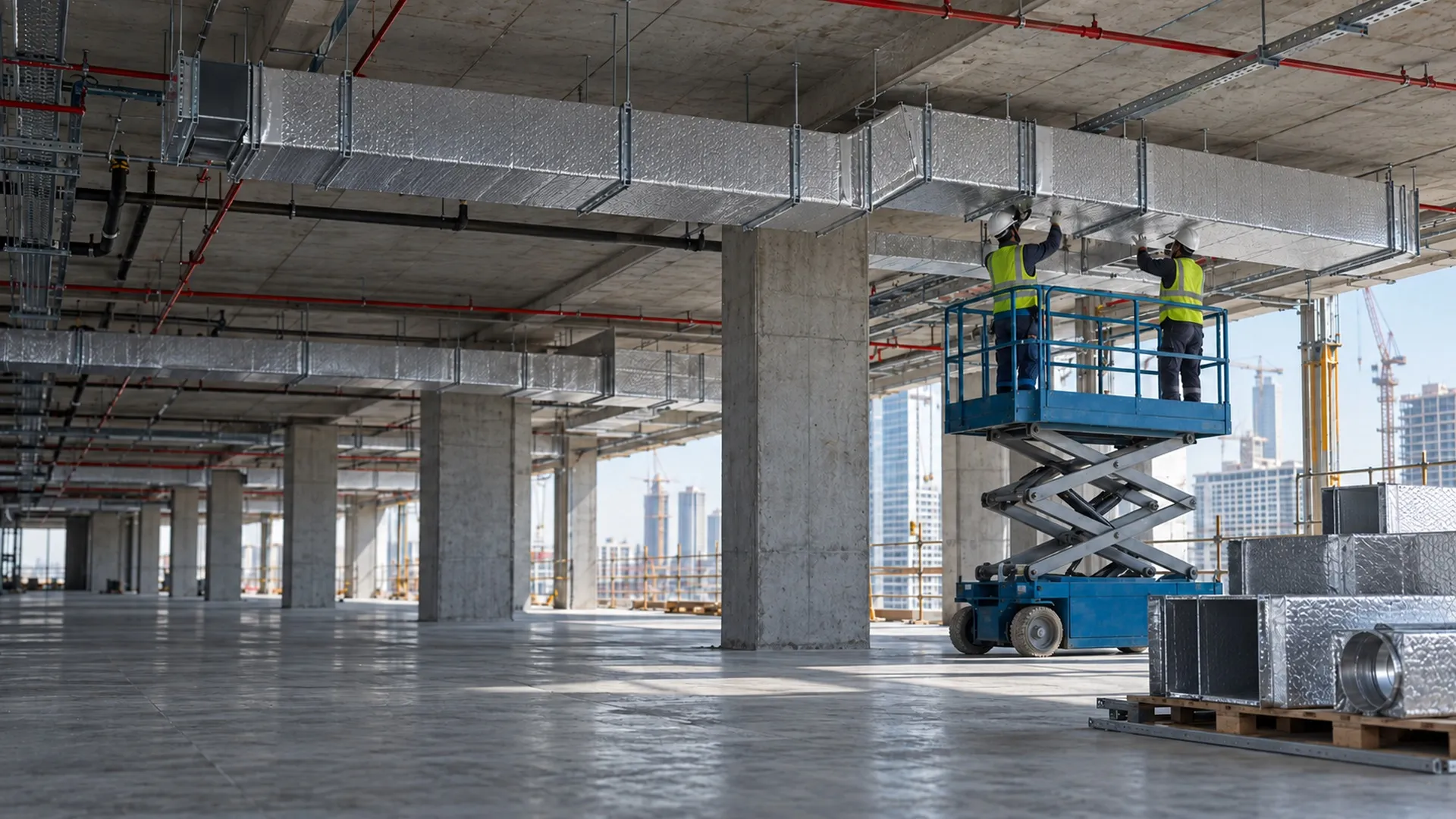

Ducting supply to your drawings
CLIMAVER sections and fittings prepared from the duct schedule and delivered ready to
hang

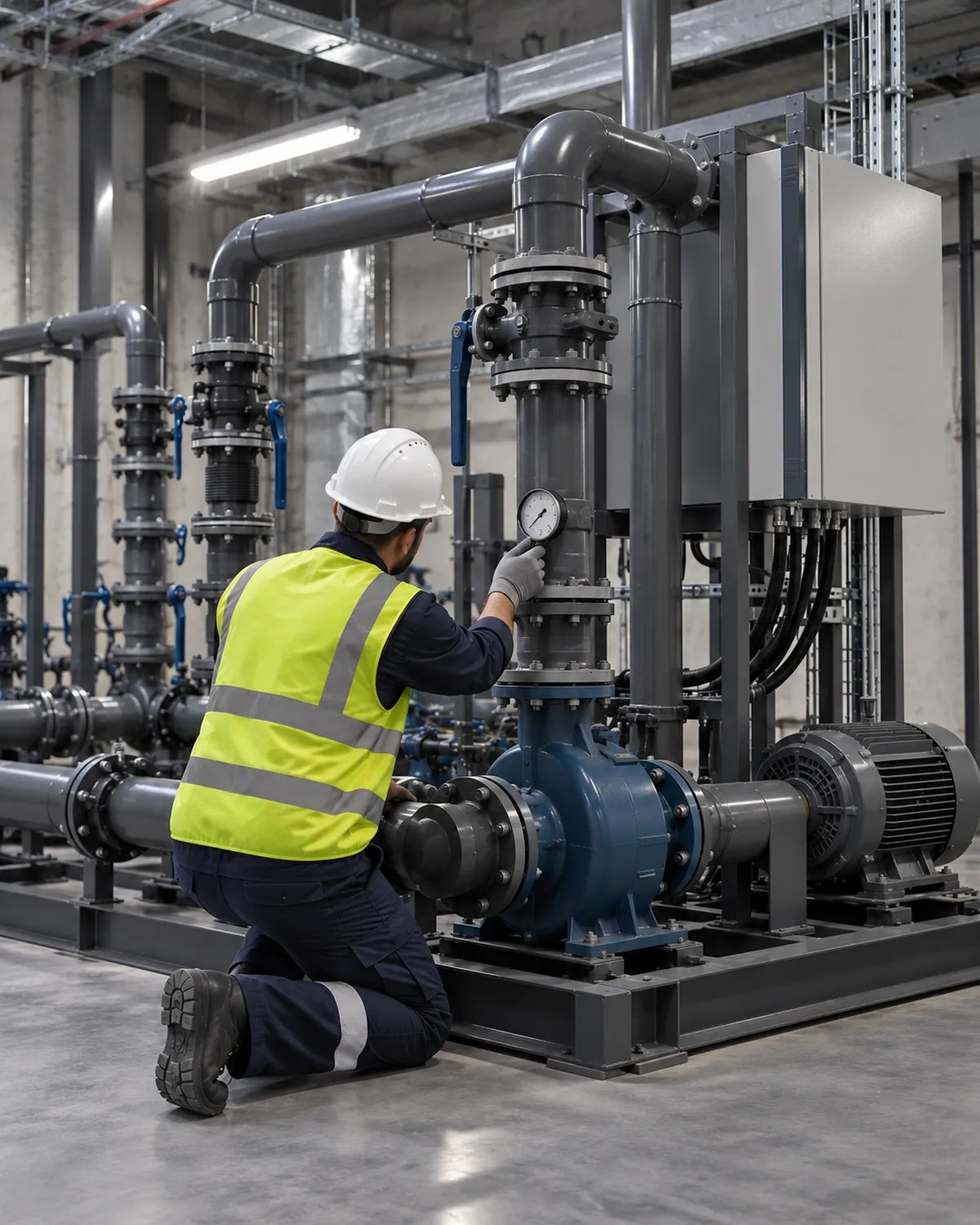

Pump skid packaging
Pumps, drives and panels selected for the duty and delivered as one tested package

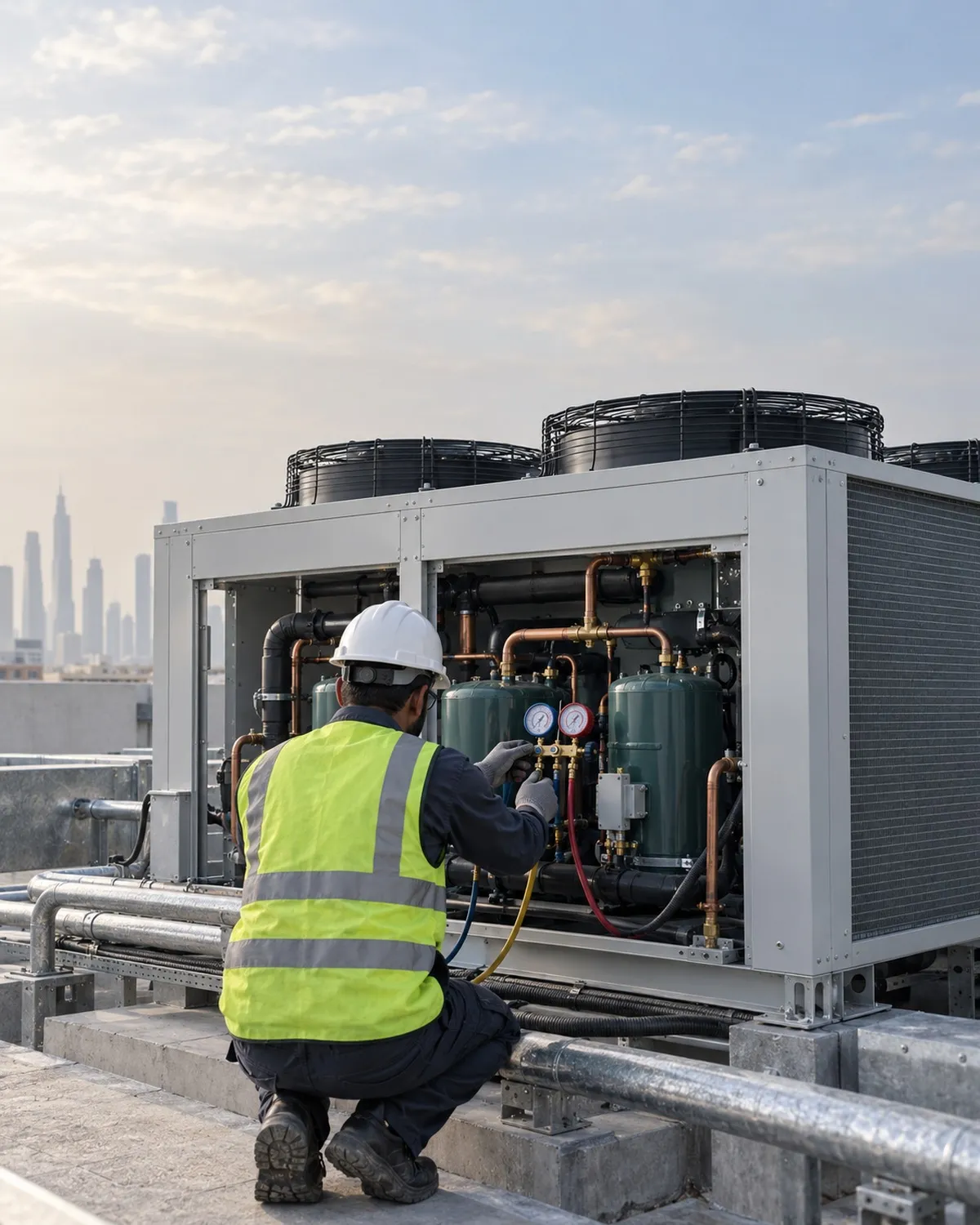

Refrigeration selection and supply
Condensing units, evaporators and racks matched to the load and supported from the UAE
Forty years in the region. One partner for three systems.
-
Four decades in the Gulf
Technics Middle East FZC belongs to a group that has worked across the region for more than 40 years. We know the climate, the codes and the deadlines.
-
Engineered to your specification
Drawings, a schedule or a duty point are the starting point. Technics specifies the system, sources the components and delivers it as one order.
-
Documented with every order
Manufacturer datasheets, certificates and order records arrive with the delivery, ready for the consultant's file.
Customer Feedback
-
Great services and good support.
-
Good Production company for metal ceiling
Ready When You Are.
A few project details are enough to get started, whether that means a quotation, a selection or a meeting with an engineer.
